Tapered Shafts and Pins


spacer

Calculate all of the dimensions required to make and measure a tapered shaft or tapered pin.


  • Convert inch per foot taper to included angle or angle per side
  • Convert angle to inch per foot
  • Convert inch per foot to taper ratio (metric tapers)
  • Convert taper ratio to angle
You can use this app to offset a lathe tailstock for taper turning, see set a tailstock.
You can also convert between inches and millimeters.

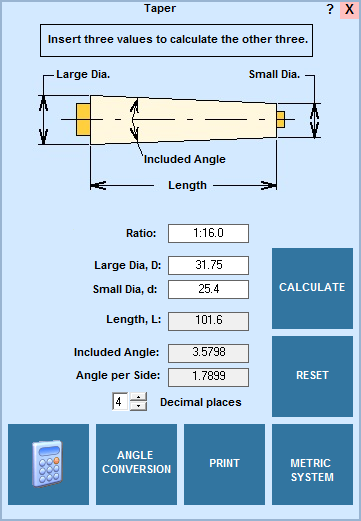

Taper pin measuring in the inch system Taper pin measuring in the metric system
