Circular Segment Calculations



x
Use this application to quickly calculate circular segment dimensions such as chord length, chord height, arc length, arc radius and included angle.
Values can be instantly converted between inch and metric systems.
Enter two values and instantly calculate the others!

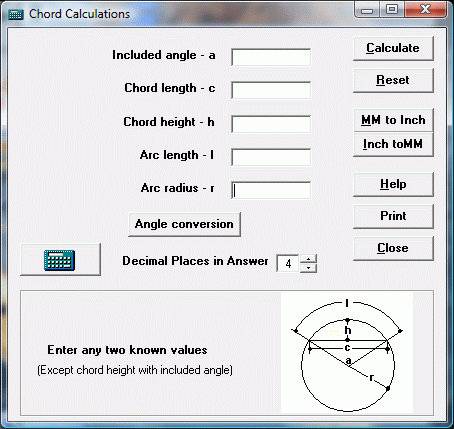

Chord geometry and circular segment calculator in EditCNC
Machinist's Calculator is also available as stand alone software. For more information, click here.
